My antenna doubler!
Hey all,

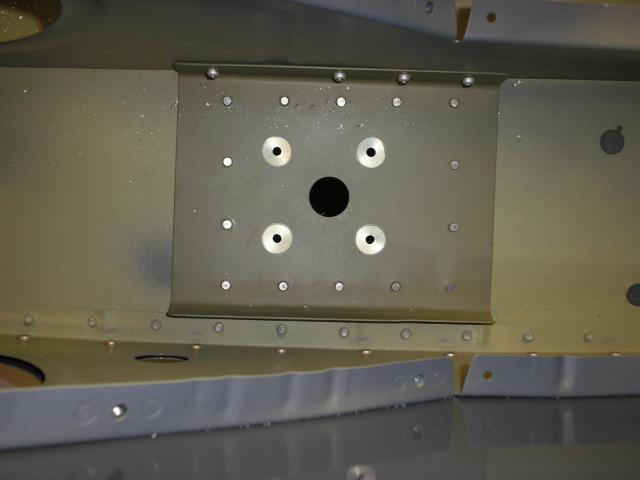

Per usual, I have noodled over this subtlety WAAAAY too long and have finally put it to bed. Here is a pic:
I gotta say, I am thrilled with the outcome and this thing is MIL-Spec all the way!
I have one on each side and it is DIESEL!
I have no doubts that it will withstand the test of time and have great signal propagation.
It is in the outermost seat rib bays and as you can see, ties the floor into the ribs nicely!
Thanks to Kevin J. and Mitch B.!
CJ
Per usual, I have noodled over this subtlety WAAAAY too long and have finally put it to bed. Here is a pic:
I gotta say, I am thrilled with the outcome and this thing is MIL-Spec all the way!
I have one on each side and it is DIESEL!
I have no doubts that it will withstand the test of time and have great signal propagation.
It is in the outermost seat rib bays and as you can see, ties the floor into the ribs nicely!
Thanks to Kevin J. and Mitch B.!
